Publications - July 2015

How to read and understand QualiEco’s technical
capability statement

Imagine a situation that you have designed a complex circuit board and released to QualiEco for quoting. Instead of receiving quote, you are advised to make few changes in design to suit our manufacturing capability. How do you feel when these changes take days to implement and disturb your project planning? Extremely frustrating and it’s not hard to guess.

Wouldn’t it be convenient if you know how to check our capability statement and use that information in your designing process?

Here are some tips:

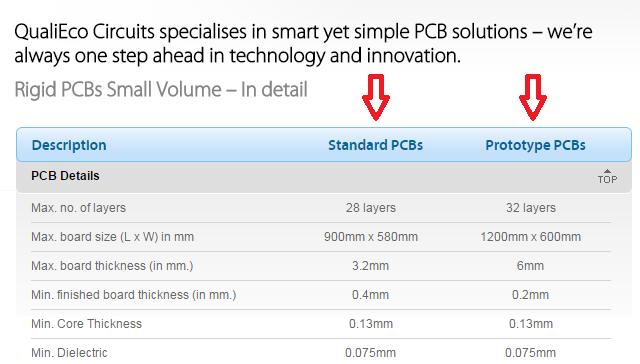

1. QualiEco has separate capability statement for prototype and production. Please ask us if you are not sure which one to refer. It is possible to manufacture small volume PCBs with tighter tolerances so if you require PCBs in small numbers, you may choose our tightest capability.

2. There are 3 BASIC technical limitations you must know before you start designing PCB -

(a) Etching limitation (i.e. minimum track width/spacing)

For 1oz standard finish copper thickness PCBs, 5-6mil (i.e. 0.127-0.152mm) is the minimum track width and spacing requirement for most manufacturers. With special attention, 3.5-4mil (i.e. 0.089-0.102mm) can be achieved on small to medium volume production. If your design requires thicker copper then minimum track width/spacing can increase up to 12 or 13mils depending on how thick copper you require.

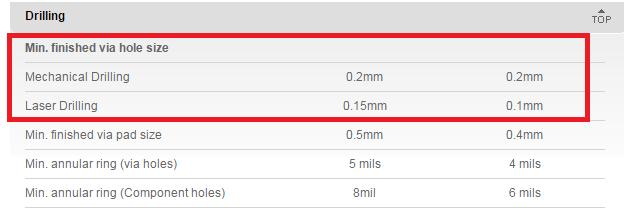

(b) Hole size limitation

Most manufacturers accept finish hole sizes from 0.3mm and higher as standard. Some manufacturers charge extra for 0.25mm finish holes (standard for QualiEco Circuits). QualiEco can also accept 0.2mm finish holes by paying extra. In few exceptional cases, 0.15mm finish hole size can also be acceptable using mechanical drilling process. Any less than 0.15mm can only be possible by laser drilling process, which is quite expensive.

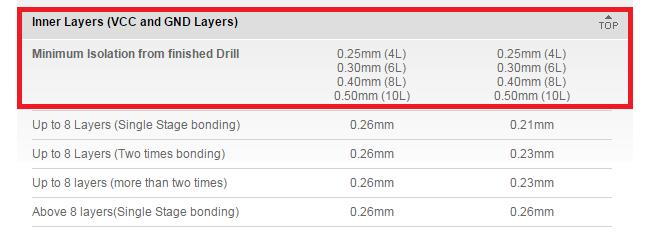

(c) Bonding & Drilling limitation - for multilayer PCBs only

The most important criterion to keep in mind while designing multi-layer PCB is the gap between edge of the hole and nearest copper area (track/pad/pour) in inner layers. For multi-layer PCBs, drilling is performed after bonding so this criterion is extremely critical for all PCB manufacturers.

It is very important to know whether plating tolerance has been added while mentioning minimum isolation in any technical capability statement. Most manufacturers including QualiEco need to add approximately 0.1mm plating tolerance for via holes. Some manufacturers display minimum isolation sizes without adding plating tolerance while some do add them. Unfortunately, there is no specific guideline for displaying this criterion.

3. Another important factor to consider in your design is the minimum copper and solder mask pad size around holes.

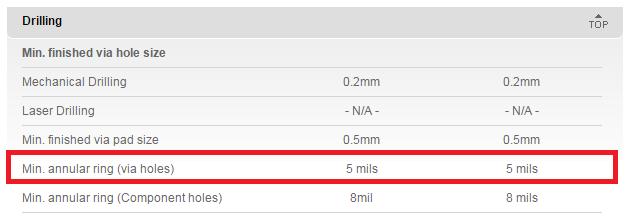

(a) Copper pad size

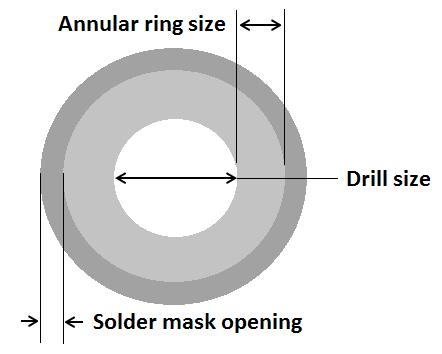

Most manufacturers define copper pads around holes as “annular ring”. There is a minimum annular ring size you need to maintain everywhere in the design.

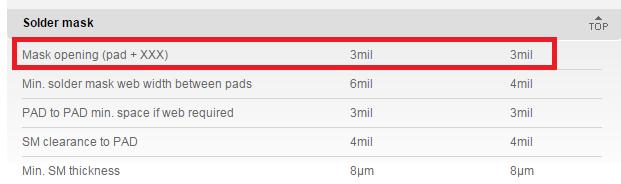

(b) Solder mask pad size

Solder mask is nothing but an opening to prevent solder bridges between adjacent pads and traces during soldering process. Most manufacturers define such opening as “mask opening”.

If you want to benefit from our monthly Technical Guide, please subscribe here.
