Multilayer Flex PCBs

Multilayer flex circuit is a combination of single and/or double-sided flex circuits laminated with thermoset adhesive onto a single and/or double-sided FR-4 clad material.

Three or more flexible conductive layers with flexible insulating layers between each one; outer layers may have covers or exposed pads.

Plated through-holes provide connection between layers.

Access holes or exposed pads without covers may be on either or both sides.

Vias can be blind or buried.

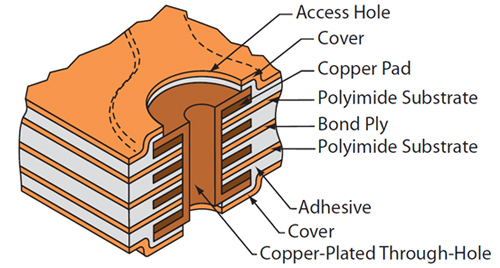

Plated through hole:

Multilayer Flex PCBs - Plated through hole



Non-plated through hole:

Multilayer Flex PCBs - Non-plated through hole
